Fire-Safe. Energy-Smart. Eco-Certified.
Next-generation phenolic insulation engineered for the world's most demanding environments.
High R-Value
Up to R-8.5 per inch for superior thermal efficiency
Class A Fire Safety
ASTM E84 certified with no toxic smoke emission
Ultra-Low VOC
Exceeds Greenguard Gold-equivalent standards
Safe & Easy Installation
Fiber-free, low VOC, minimal dust generation. No professional installers required. Standard safety practices recommended.
UL 181 Certified
Proven performance for HVAC applications.
Why Choose AegisTherm?
Discover the advanced engineering and superior performance that makes AegisTherm the preferred choice for demanding building applications.
Superior Fire Safety Performance
Class A Fire Resistance & Clean Combustion
ASTM E84 Class A Fire Rating
AegisTherm phenolic insulation delivers exceptional fire safety with quasi-noncombustible properties and minimal flame spread.
✨ Zero toxic emissions when exposed to extreme heat
Key Performance Metrics
Flame Spread Index: ≤25 (Class A)
Smoke Development: ≤450
No toxic smoke or flaming droplets
Forms protective char layer during fire exposure
Fire Test Comparison
Watch how different insulation materials react to direct flame exposure. AegisTherm phenolic insulation demonstrates superior fire safety characteristics.
Loading video...
AegisTherm Phenolic
No flame spread, protective char layer formation
Loading video...
XPS (Extruded Polystyrene)
Rapid melting and dripping when exposed to flame
Loading video...
EPS (Expanded Polystyrene)
Toxic black smoke production and active flames
Loading video...
PU (Polyurethane)
Standard fire performance comparison
Fire Test Conditions
Temperature
Direct flame exposure at 4172°F (2300°C)
Duration
Continuous 5-minute exposure period
Measurement
ASTM E84 test methodology
Verified by Experts
Tested by independent laboratories including KTR and UL Solutions. Fully compliant with international standards for fire safety and indoor air quality.
KTR Fire & VOC Reports
CertifiedIndependent fire safety and indoor air quality testing
Comprehensive testing for fire resistance and volatile organic compound emissions
UL 181 Certified
CertifiedFactory-made air ducts and connectors standard
Proven performance for HVAC applications with flame penetration resistance
ASTM E84 Class A
CertifiedSurface burning characteristics standard
Superior fire safety rating with minimal flame spread and smoke development
KS M ISO 4898:2018
CompliantKorean industrial standard for cellular plastics
International compliance for thermal insulation performance
LEED / WELL Building Standard
CompatibleGreen building certification compatibility
Supports sustainable building practices and occupant health
Greenguard Gold Equivalent
ExceedsLow chemical emissions standard
Ultra-low VOC emissions for healthy indoor environments
Trusted Testing Partners
KTR
Independent testing laboratory
UL Solutions
Safety science and certification leader
Code Compliance
Meets or exceeds building codes and fire safety requirements worldwide
Third-Party Verified
Independent testing ensures consistent quality and performance standards
Peace of Mind
Comprehensive certifications provide confidence in product reliability
Engineered for Demanding Environments
AegisTherm phenolic insulation delivers superior performance across diverse applications, from mission-critical data centers to residential comfort solutions.

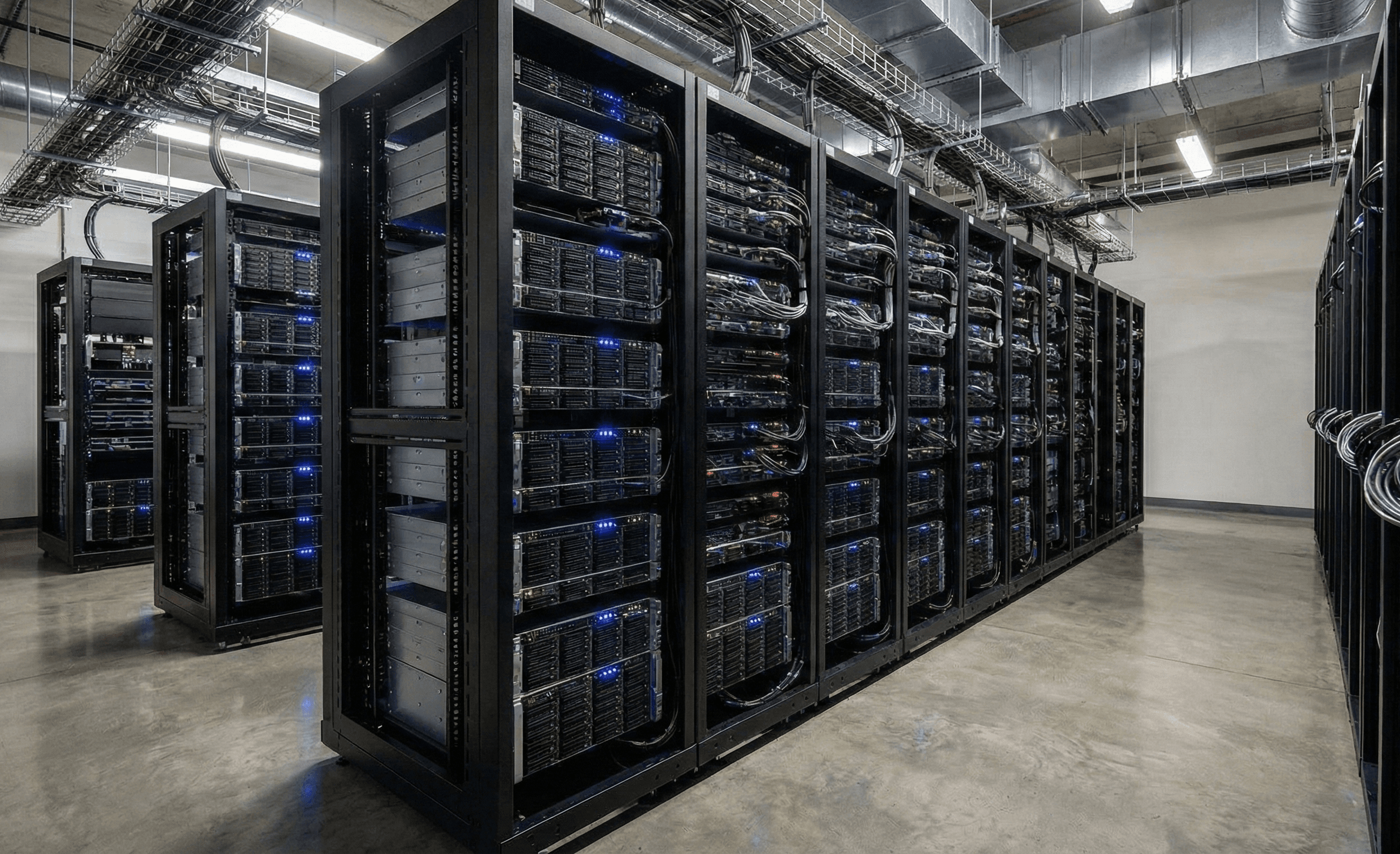

Data Centers
Critical fire safety and thermal management for server environments requiring maximum uptime and protection.
Key Features:

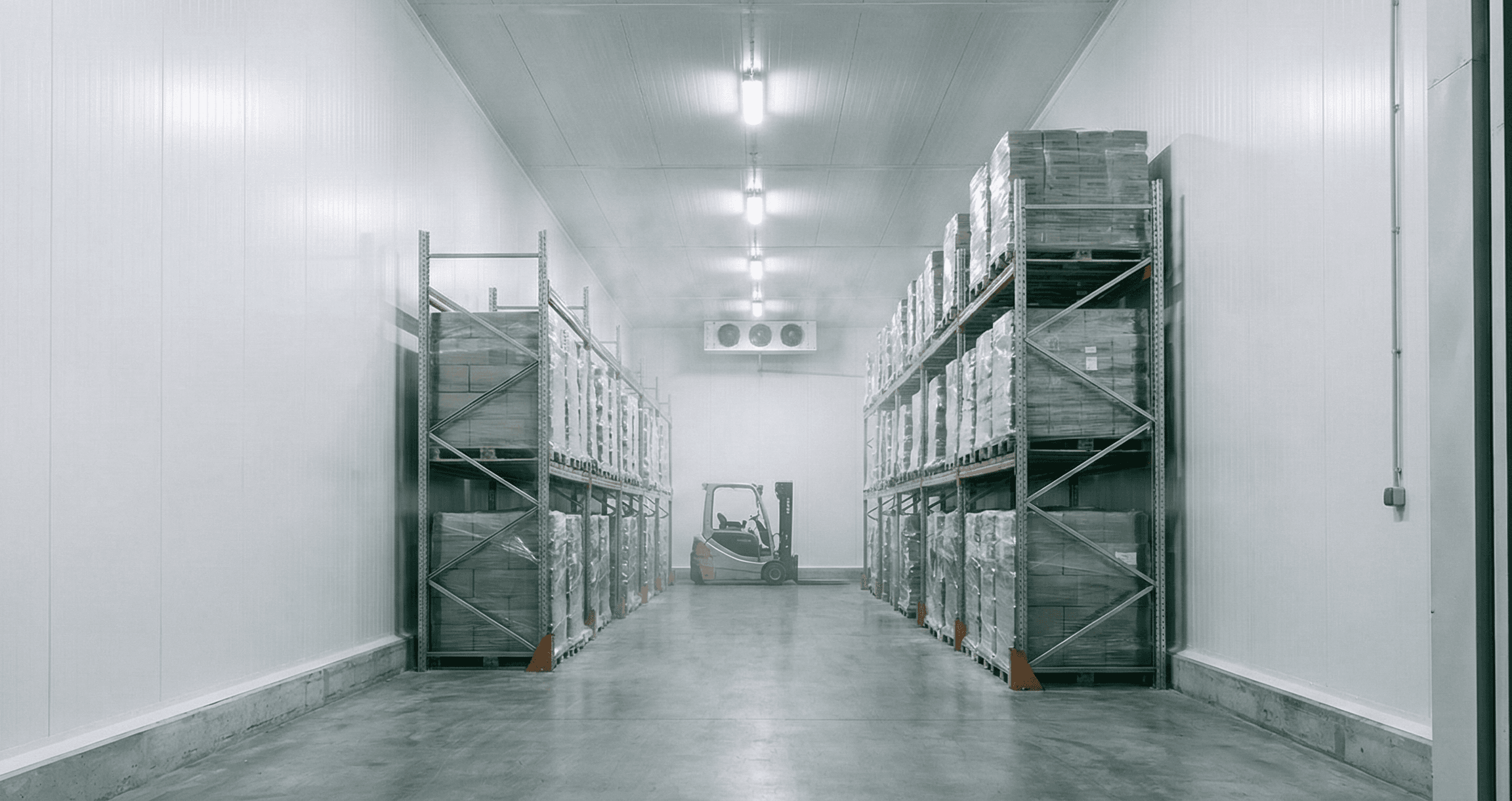

Cold Chain Warehouses
Maintains insulation performance in extreme cold storage conditions while preventing condensation issues.
Key Features:

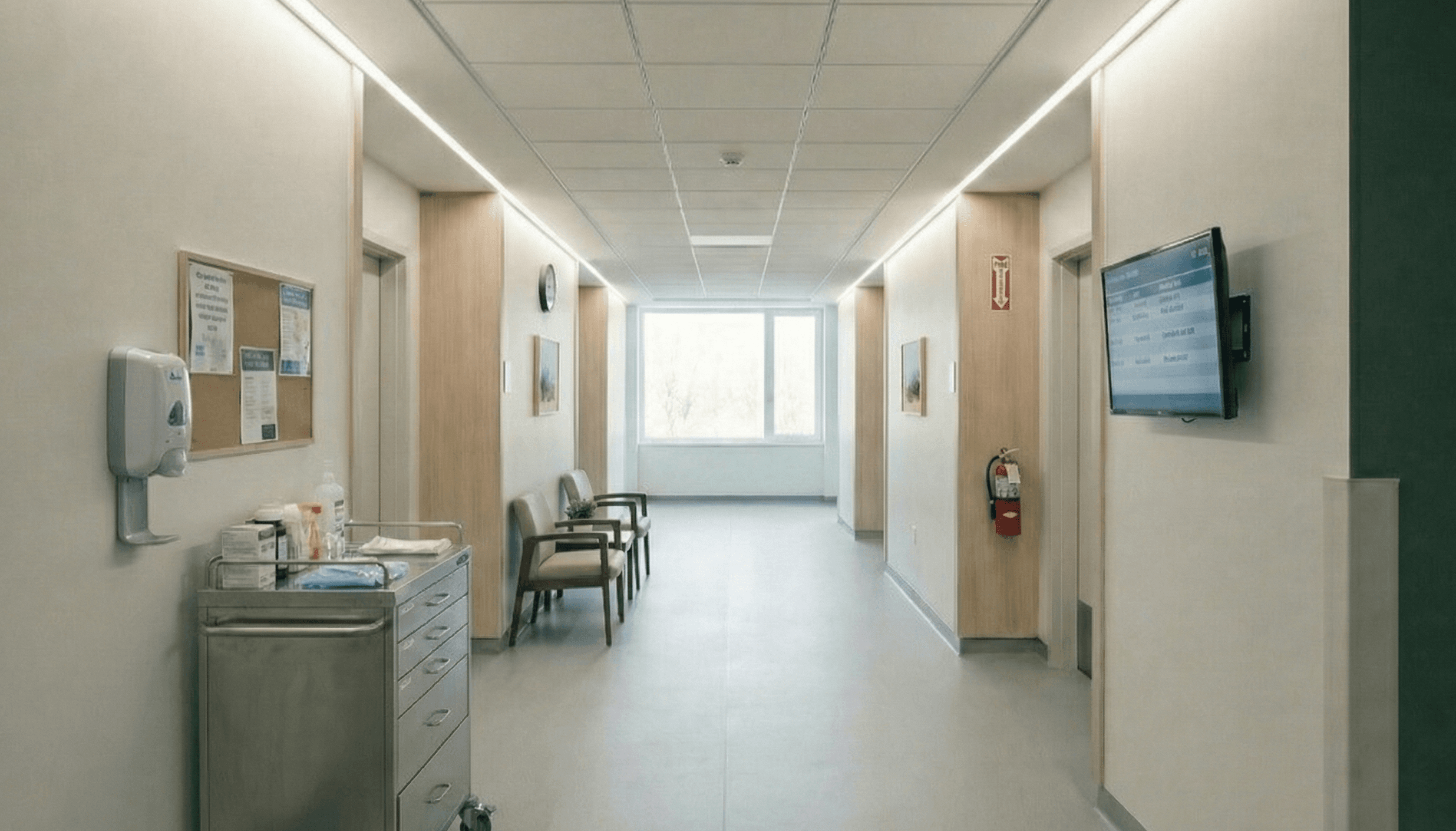

Healthcare Facilities
Superior indoor air quality for patient safety and comfort in medical facilities.
Key Features:

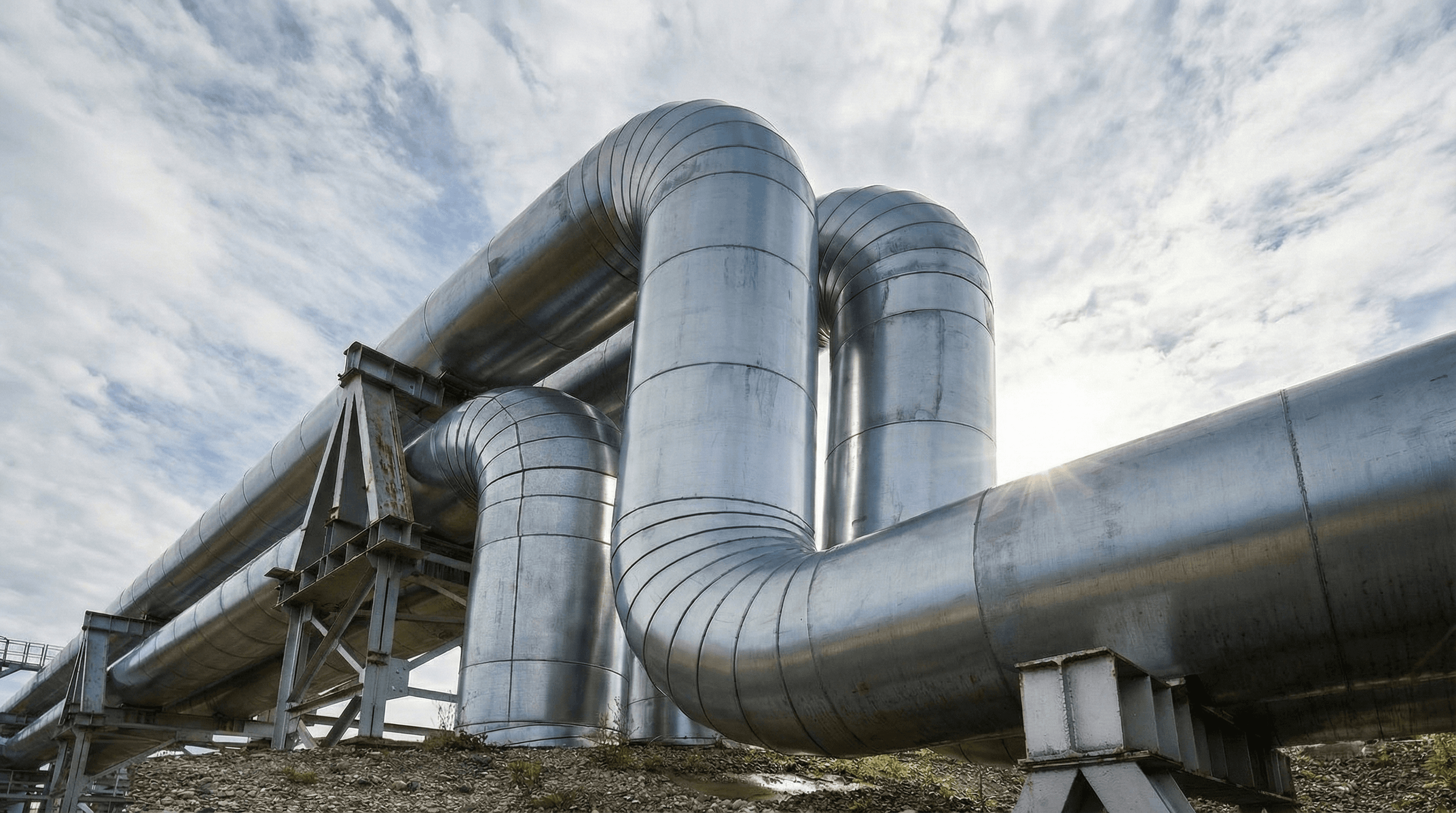

Industrial Pipelines
Specialized insulation for industrial piping systems requiring high-temperature performance.
Key Features:

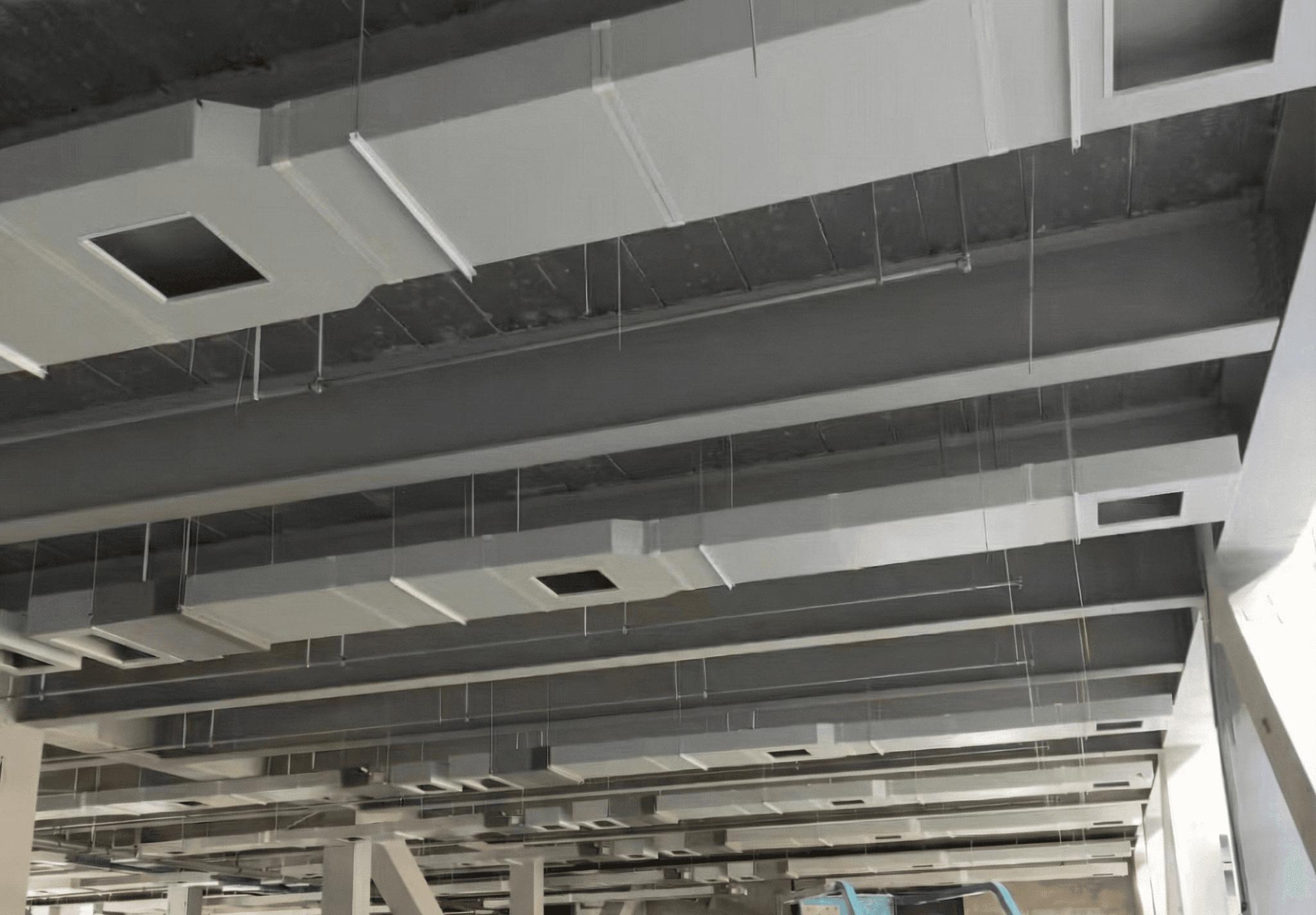

HVAC Ducting
Certified performance for HVAC applications with proven fire safety and efficiency ratings.
Key Features:

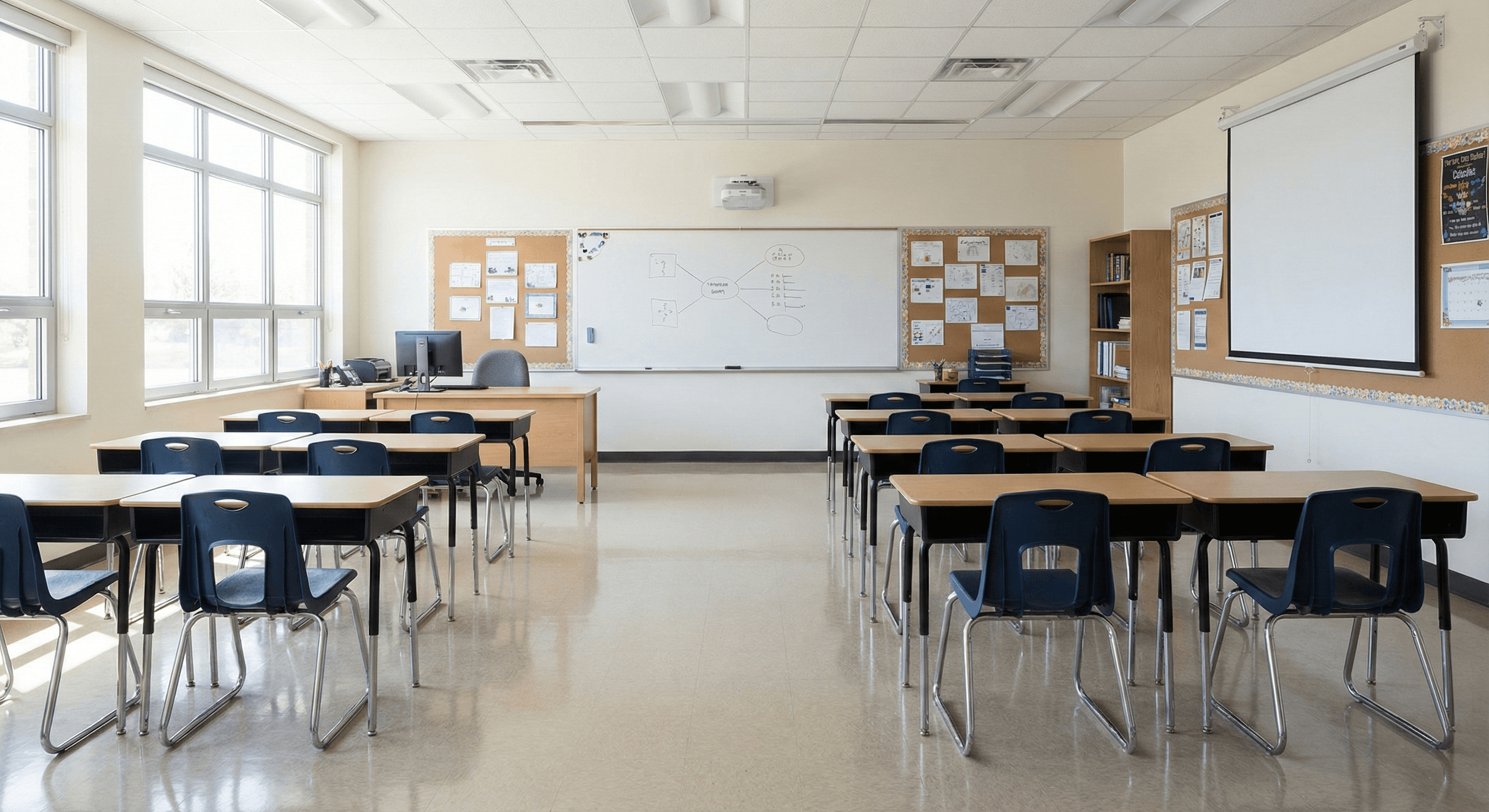

Schools
Creating healthy learning environments with safe, non-toxic insulation materials.
Key Features:
High-Rise & Tunnels
Space-efficient fire safety solutions for high-density construction and infrastructure.
Key Features:

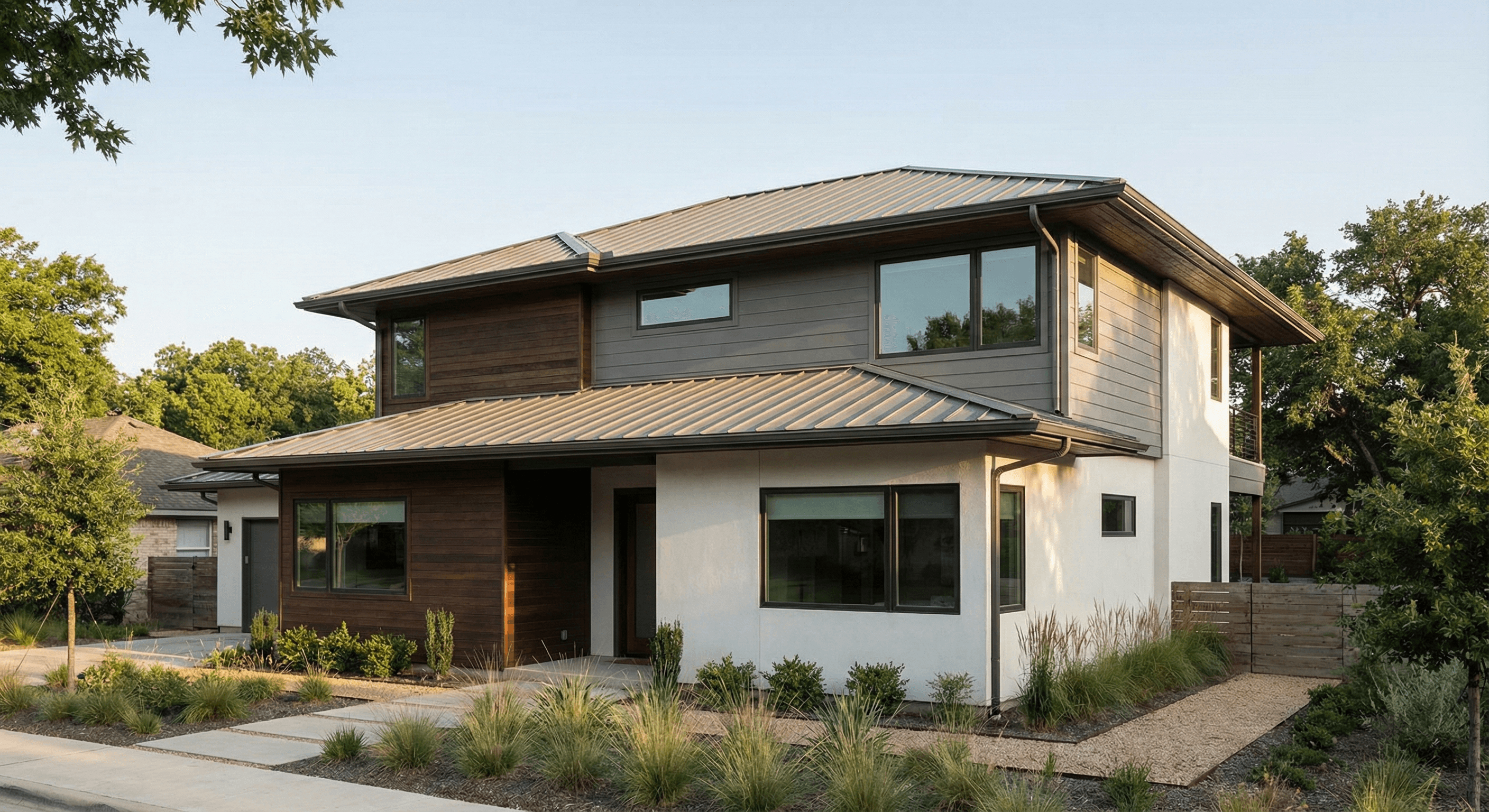

Homes & Residences
Energy-efficient insulation that promotes healthy indoor environments for families.
Key Features:

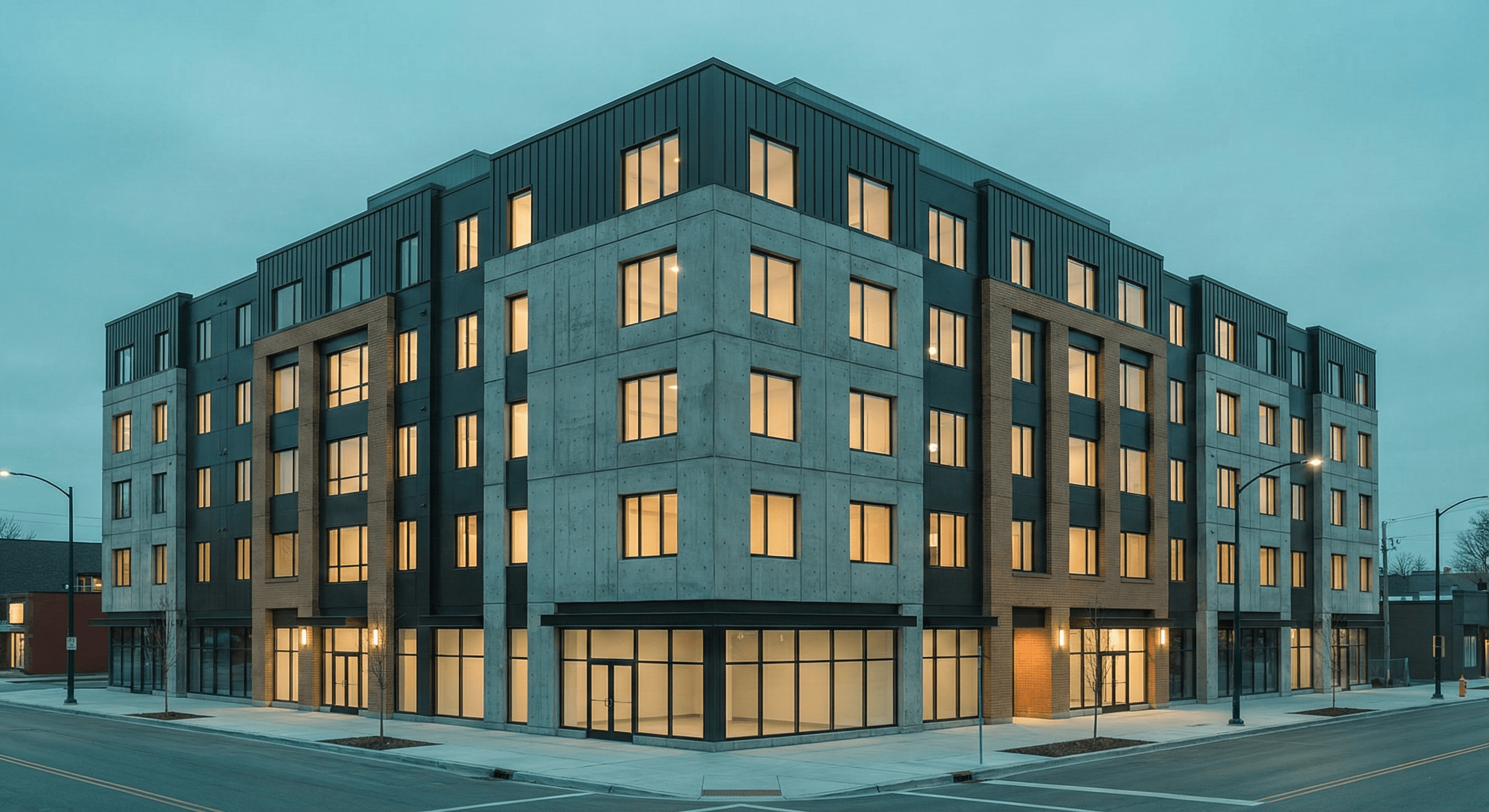

Commercial Buildings
Comprehensive building envelope solution for walls and roofs in commercial construction.
Key Features:
Performance Across All Applications
Fire Safety
ASTM E84 Class A rating across all applications
Thermal Performance
Up to R-8.5 per inch thermal resistance
Clean Air
Ultra-low VOC emissions for healthy environments
Durability
Long-term dimensional stability and performance
Technical Specifications & Performance Data
Comprehensive technical data demonstrating AegisTherm's superior performance characteristics across all key metrics compared to conventional insulation materials.
AegisTherm Core Specifications
| Parameter | Value/Range | Notes |
|---|---|---|
| Thermal Conductivity | 0.017–0.020 W/(m·K) | Superior thermal resistance for energy efficiency |
| R-Value | Up to 8.5 per inch | Outstanding thermal insulation performance |
| Board Thickness | 1" – 8" | Wide range of thickness options for various applications |
| Standard Panel Size | 4' × 8' | Industry-standard dimensions with custom sizes available |
| Core Density | ≈2.5–3.7 lb/ft³ | Optimal density for strength and thermal performance |
| Water Absorption | <1% | Very low moisture absorption for long-term performance |
| Operating Temperature | -300°F to 300°F | Wide temperature range for diverse applications |
| R-Value Loss at Low Temp | <2% | Maintains thermal performance in cold conditions |
Fire Safety
Thermal Performance
Environmental & Safety
Installation & Handling
Comprehensive Material Performance Comparison
| Property | AegisTherm Phenolic | PUR | PIR | XPS | EPS | Rock Wool |
|---|---|---|---|---|---|---|
| Thermal Conductivity (λ) | 0.017–0.020 | 0.022–0.026 | 0.020–0.024 | 0.030–0.035 | 0.035–0.040 | 0.035–0.045 |
| R-Value per Inch | Up to R-8.5 | R-6 ~ R-6.5 | R-6.5 ~ R-7 | R-5 ~ R-5.4 | R-4 ~ R-4.2 | R-3.5 ~ R-4 |
| Fire Resistance | Quasi-Noncombustible (Class A) | Moderate (requires retardant) | High (Class A) | Poor | Poor | Non-combustible (Class A1) |
| Smoke & Toxicity | Very low, non-toxic, no flaming droplets | Moderate, toxic smoke | Low | High | High | Low |
| Water Absorption | Very low (<1%) | Low | Low | Very low | High | High |
| Environmental Safety (VOC) | Best-in-Class, Ultra-low (Greenguard Gold level) | Average | Better | Good | Fair | Excellent |
| Installation Friendliness | Clean cutting, minimal dust - standard safety practices recommended | Toxic vapor - requires full-face respirator | Fine dust - requires mask and goggles | Low dust - minimal protection | Low dust - minimal protection | Irritating fibers - requires gloves, goggles, N95 |
* Data based on standard testing conditions. AegisTherm values highlighted in green demonstrate superior performance.
Highest R-Value
Up to 70% better thermal performance than EPS, 30% better than PUR/PIR
Class A Fire Safety
Quasi-noncombustible with zero toxic emissions - safest in category
Standard Safety Practices
Clean, minimal dust installation - standard safety equipment recommended (gloves & dust mask when cutting)
Frequently Asked Questions
Find answers to common questions about AegisTherm phenolic insulation technology, applications, and performance characteristics.
About AegisTherm
AegisTherm is a Houston, Texas–based international company specializing in phenolic insulation materials. With years of experience in research, development, and manufacturing, AegisTherm serves a global market with advanced thermal and fire-safe solutions.
We are a next-generation phenolic insulation brand committed to delivering the highest standards of fire safety, thermal performance, and environmental compliance. Designed for mission-critical and high-performance building environments, AegisTherm phenolic boards combine advanced materials science with practical installation efficiency.
Our insulation solutions are trusted by architects, engineers, and contractors for a wide range of applications—from data centers and hospitals to high-rise towers and HVAC systems. With UL181 certification, quasi-noncombustibility, ultra-low VOC emissions, and precision engineering, AegisTherm stands at the forefront of sustainable building innovation.
Our products have been rigorously tested and certified by leading laboratories in South Korea and Japan, meeting some of the most stringent international standards. AegisTherm materials are widely adopted in both public and private sector projects across these countries and are highly regarded for their performance, reliability, and ease of use.
We don't just make insulation—we make buildings safer, cleaner, and more efficient for decades to come.
Let's Build Smarter Together
Ready to experience the superior performance of AegisTherm? Contact us for samples, technical specifications, or to discuss your specific project requirements.
